Gigerwald Hydroelectric Scheme, Switzerland

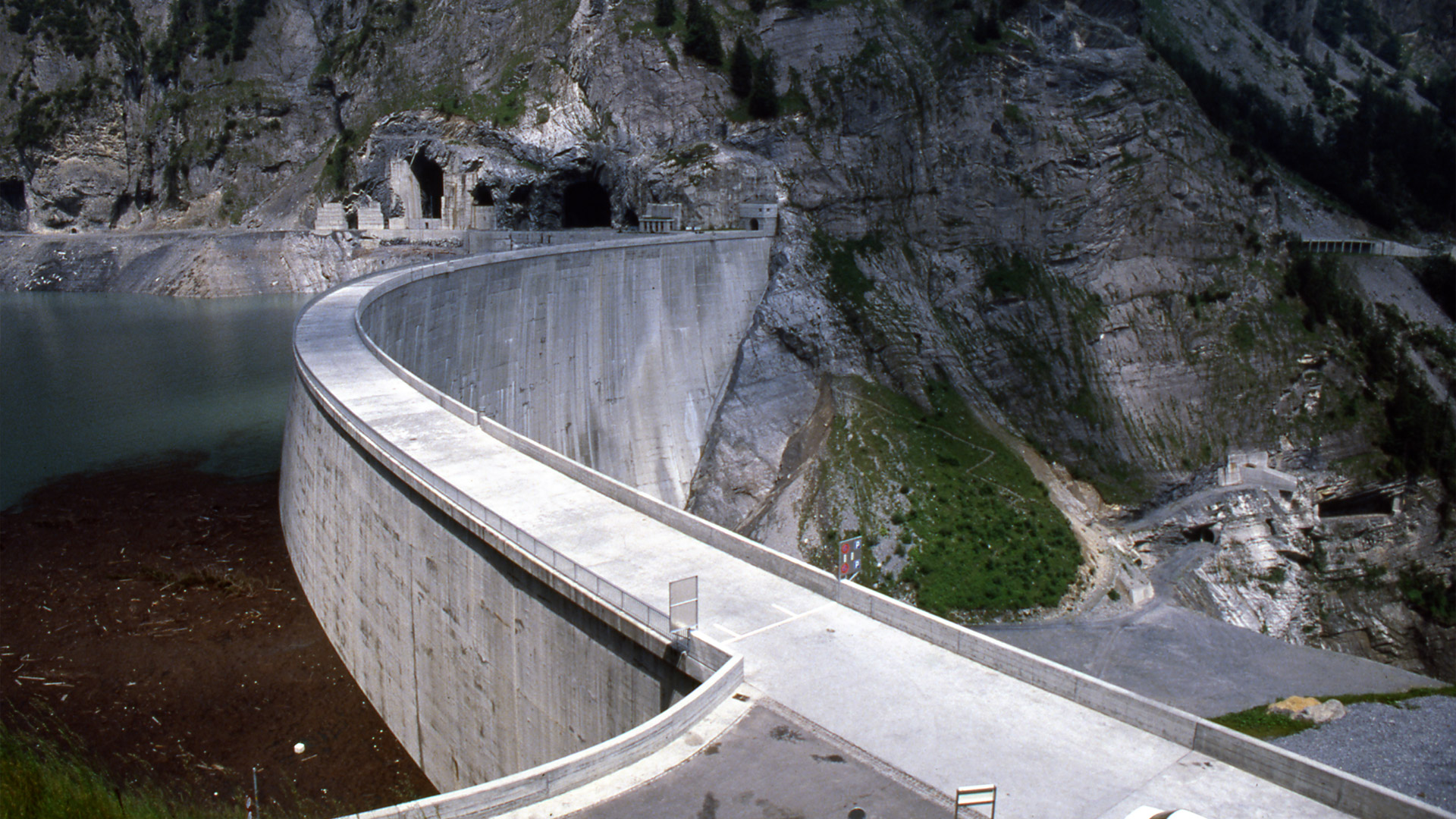

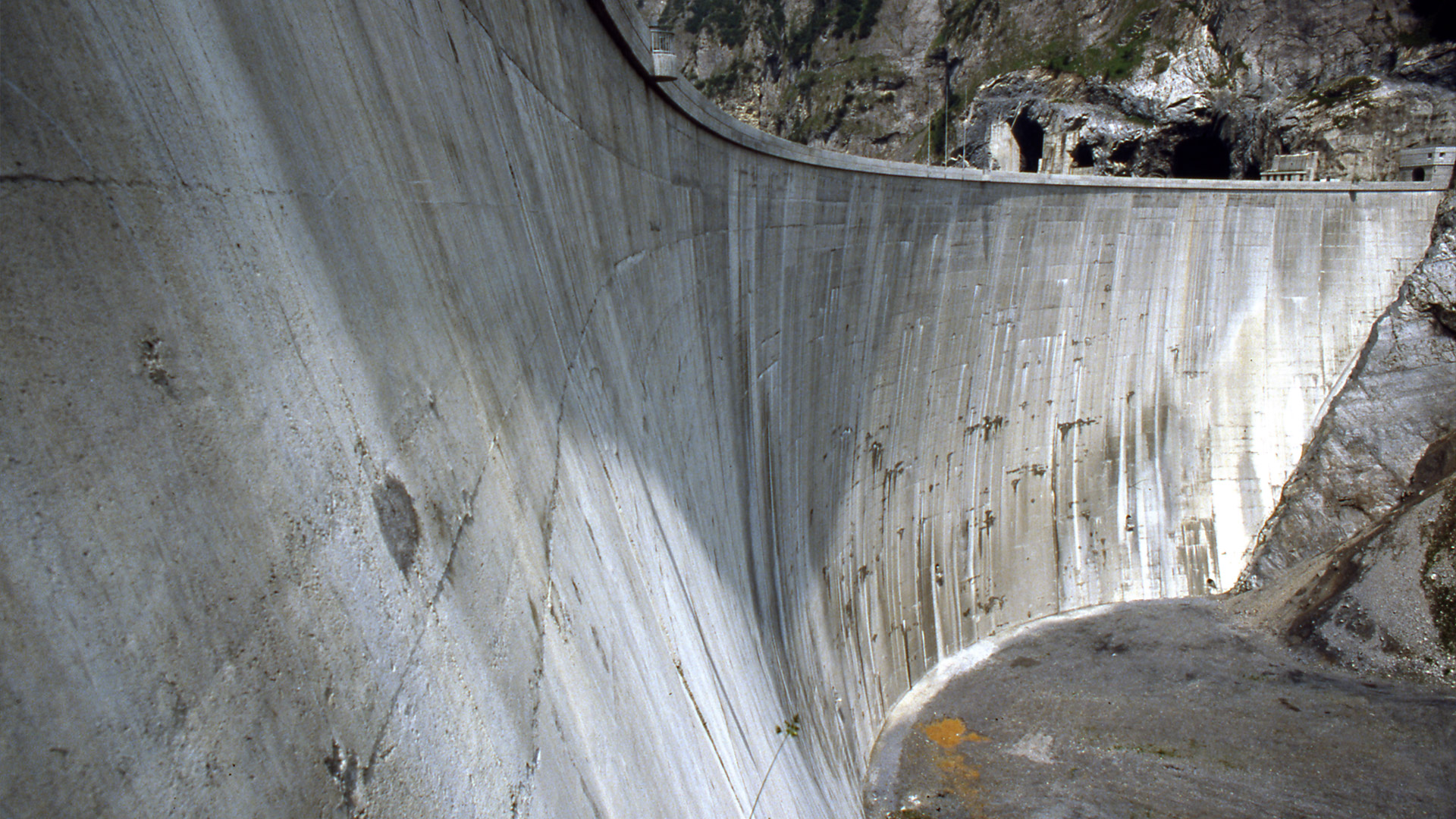

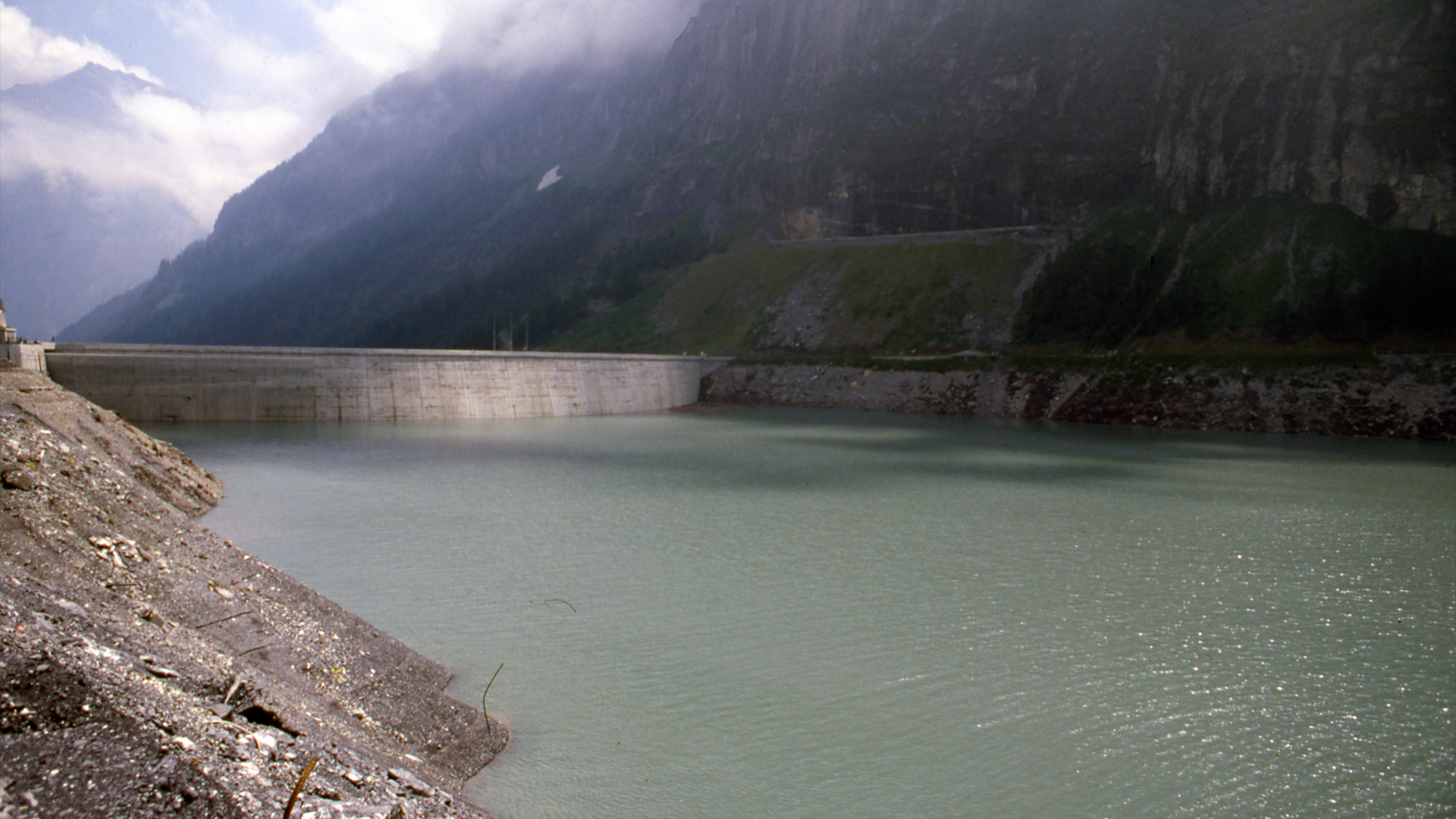

The Gigerwald Dam, located in Switzerland, represents a significant example of hydroelectric engineering. Built between 1972 and 1976, this imposing structure is a double-curvature arch dam, standing at a maximum height of 150 meters with a crest length of 420 meters. Managed by the Gigerwald hydroelectric consortium, the project was primarily conceived for hydroelectric power generation, harnessing the natural resources of the Alpine region.

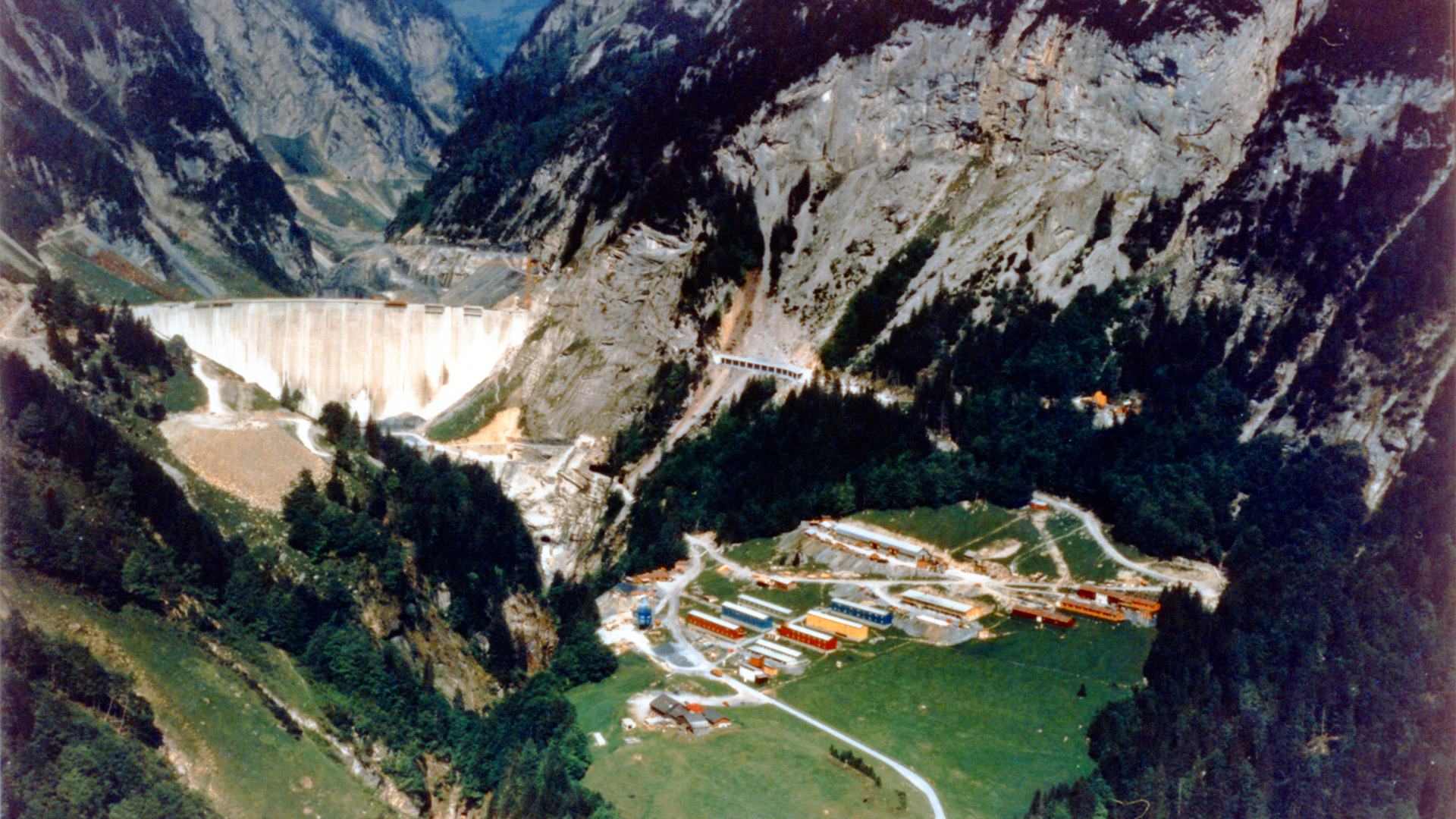

In addition to the dam itself, the project included the construction of important ancillary works, such as 2,000 meters of tunnels and the use of 450,000 cubic meters of concrete. These infrastructures were designed not only to support the stability of the dam but also to optimize water flow and manage sedimentation issues.

Sedimentation poses one of the main challenges for hydroelectric plants, as rivers carry sediments such as sand and gravel that can accumulate in reservoirs. At Gigerwald, an innovative system was implemented to address this issue: raising the lower outlet. This method allows sediment management without the need for dredging operations or reservoir draining, thus maintaining the efficiency of the plant over time.

The operation of the dam also involves using the water flowing through the system to power turbines, generating electrical energy. This "working water" is crucial for the energy generation process, utilizing the height difference between the reservoir level and the power plant itself.

In summary, the Gigerwald Dam is not only an engineering landmark but also a cornerstone of sustainable energy supply in Switzerland. Thanks to its advanced design and effective management of water resources, it continues to play a crucial role in providing renewable energy to the region, significantly contributing to carbon emission reduction and the country's energy security.
